Large Straight Actuator Moving Block
$60.00
In stock

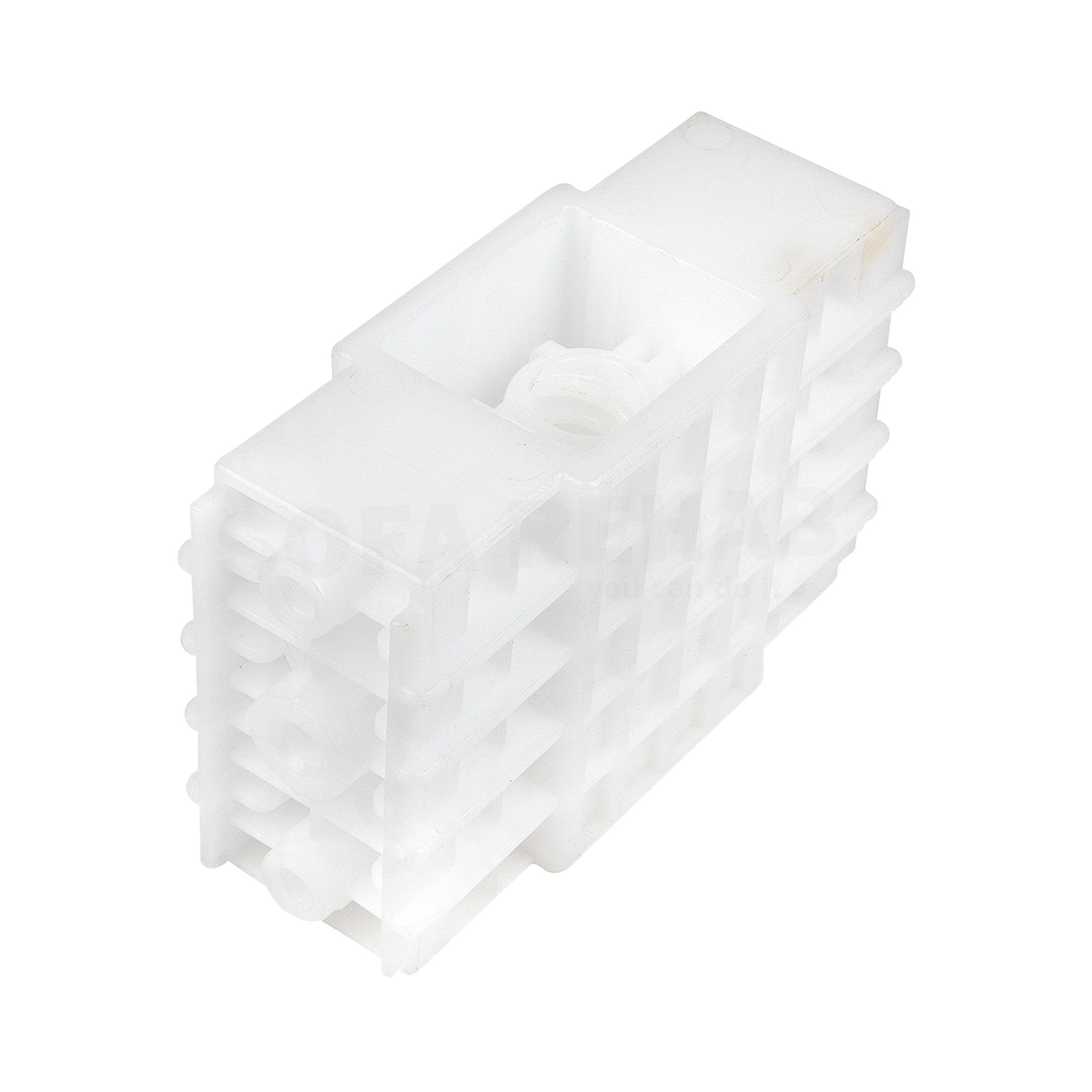

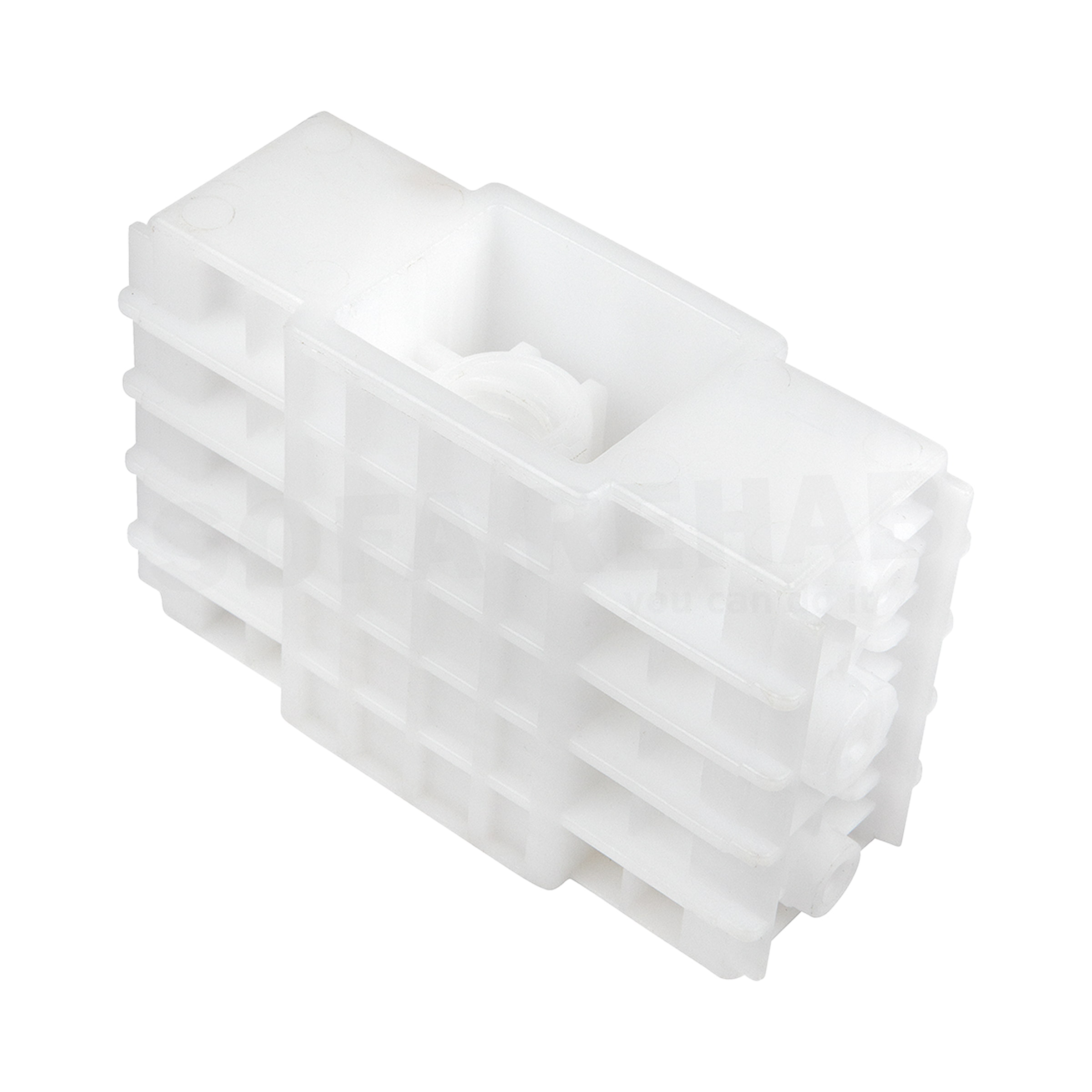

This replacement actuator moving block is a rectangular shape, straight with no arch/curve. Commonly found on eMoMo brand actuators, this white block is what connects the actuator shaft to the recliner mechanism. This moving block piece is perfect for handymen and repair technicians who can replace the part rather than buying a whole new actuator. Replacement Large 3-Hole Actuator Guide Block. This is the large version which can be identified by 3 mount holes on each size of the plastic block. We also sell the smaller size. Not The Right Fit? View Our Other Ones. We've got a range of 6 different moving block designs to accomodate a plethora of electric recliner models. If this isn't the right one then check our actuator moving blocks (click here) catalogue for the right match. read more
- Description
- Compatible Models
- Reviews (0)
- Add a review
Description

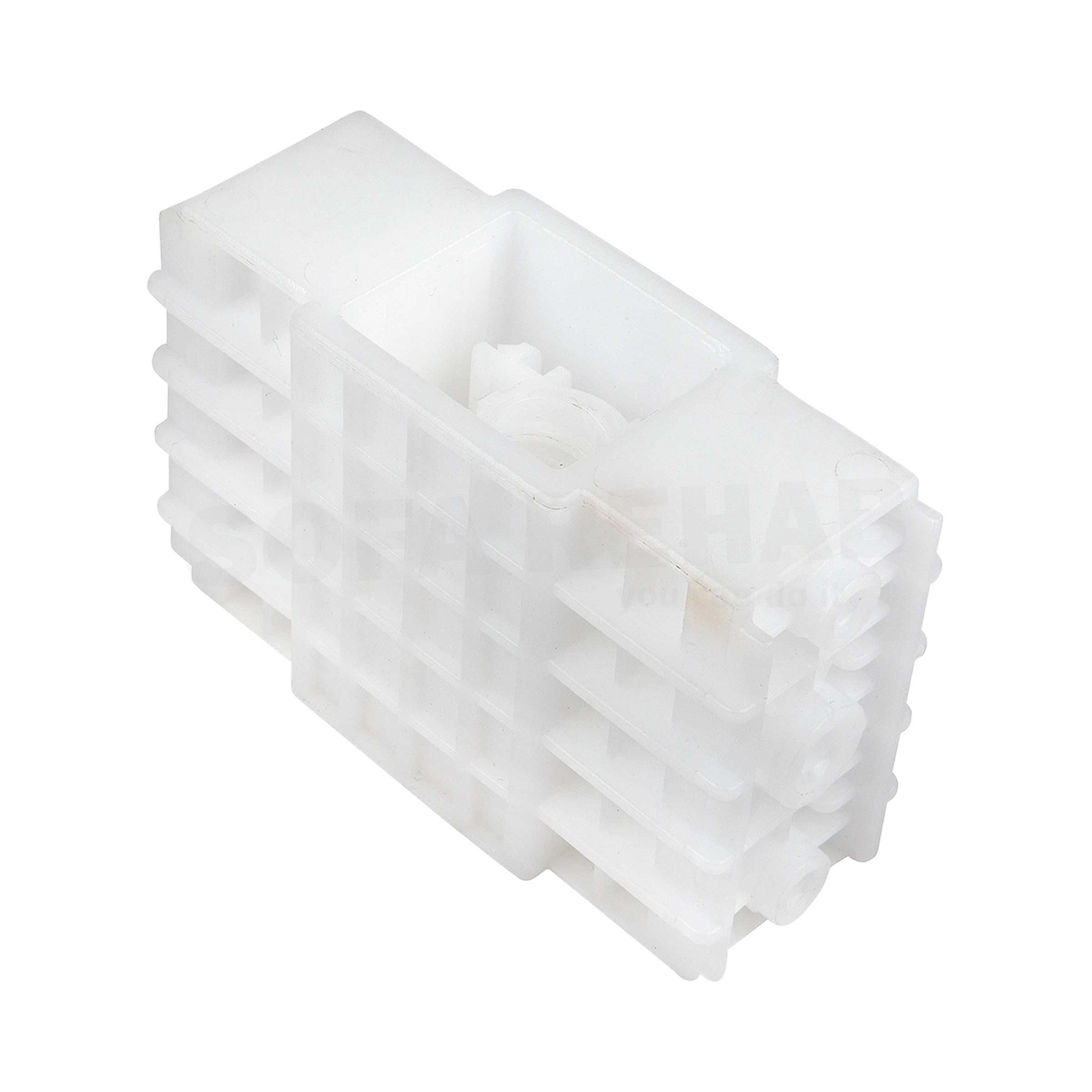

White Plastic Actuator Glide Block OEM Replacement Part
If your electric recliner chair or sofa movement has failed due to a broken plastic glide block, this replacement part offers a great value repair for an otherwise working actuator. This is a like-for-like replacement moving block, commonly fitted to eMoMo brand actuators. Ideally suited to handyman seeking a cost-effective repair without needing to replace the whole actuator.
For more extensive actuator issues, we also provide a complete selection of electric recliner actuators (click here) for any recliner and lift chair.
Moving Block Dimensions and Measuring Guide

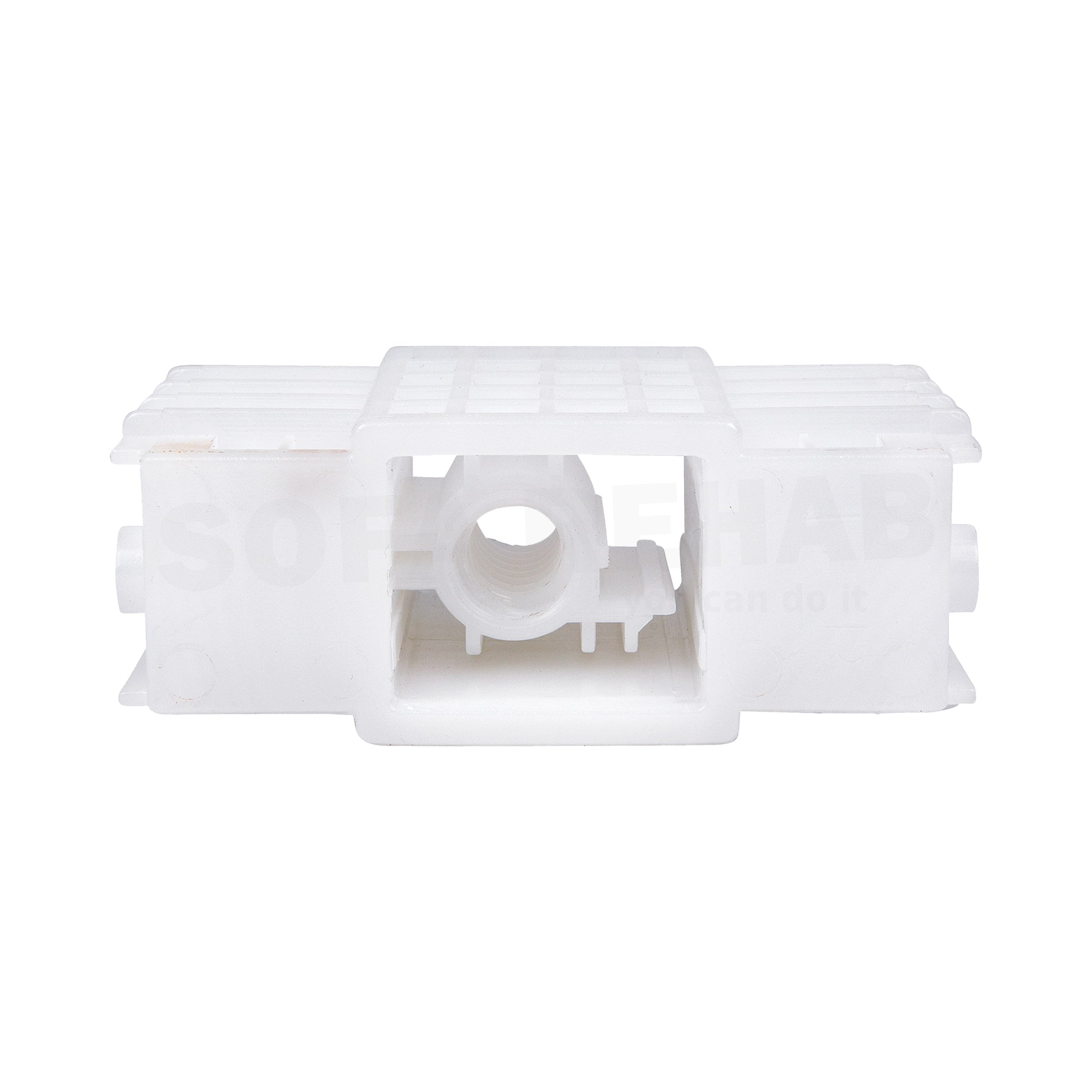

This moving block’s rectangular dimensions are 95mm in length, 38mm in height, and 62mm in depth. Accommodating an industry standard drive shaft rod with a diameter of approximately 9.7mm. The 3 holes on each side of the plastic guide block are unthreaded and used for mounting the recliners mechanism to the electric actuator.
If your block size or shape differs then see our actuator moving blocks and clevis selection (click here) to find match your actuator’s needs.
Choosing the Correct Actuator Moving Block for Your Repair
Among the various designs for actuator moving blocks, our straight rectangular shaped block is available in 2 sizes, this being the larger size with 3 mount holes on each side. If your plastic block is the same shape but only has 2 mounting holes in either side then you’ve got the small size version (click here).
For personalised assistance or further information regarding your repair, please reach out to us.
Compatible Models
Compatible Models
This actuator moving block is used by the OEM for the following brands & models of recliner actuators:
- eMoMo 3MTR 3MR134-333S
- eMoMo 3MTR 3MR135-334E
- eMoMo 3MTR 3MR135-334T
- eMoMo 3MTR 3M157-203E
- eMoMo 3MTR 3MR133-226A
- eMoMo 3MTR 3MR157-203T
- eMoMo 3MTR 3MR157-333T
This is not a full complete list, we will update as and when we are aware of compatible brands & models.
