Okin JLDP.05.058.000 Control Box
$150.00
In stock
Replacement Okin Refined JLDP.05.058.000 control box for dual-actuator recliners, lift chairs and adjustable beds. Accepts the standard 29 V DC power pack, two 5-pin motor leads and a 7-pin handset or RF dongle, restoring full forward-and-back motion when your original junction box has failed. DIY plug-and-play swap in minutes with no rewiring or programming required. JLDP.05 Dual-Motor Junction Box Replacement. Direct swap for units labelled JLDP.05.058.000; not suitable for other suffixes. Fits most Okin Refined dual-motor recliner and adjustable-bed setups—simply match the part code and 8-pin power plug for instant compatibility. Need another model or help matching your part number? Browse our complete range of recliner control boxes (click here) or chat with our repair team for free guidance. We keep JLDP-05 variants, handsets, transformers and more in-stock so you get the right fix first time. read more
In stock
- Description
- Technical Specifications
- How To
- Reviews (0)
- FAQs
- Add a review
Description
Okin JLDP-05 Dual-Motor Control Box – Model JLDP.05.058.000
Restore smooth, simultaneous motion to dual-actuator recliners, lift chairs and adjustable beds with this genuine Okin Refined junction box. It accepts the standard 29 V DC power adaptor (8-pin plug), drives two linear actuators via 5-pin DIN ports, and reads commands from a 7-pin handset or RF receiver. Match the full code JLDP.05.058.000 on your existing unit for an effortless, plug-and-play swap—no rewiring, pairing or programming required.
Check the Part Number and Plug Style Before Ordering
Okin control boxes look similar, yet each suffix (.051, .058, .069, etc.) contains different firmware and socket maps. Before you buy, confirm the exact code on the product label and make sure your power adaptor uses Okin’s 8-pin white plug. If your label differs, browse our complete range of electric recliner control boxes (click here) or contact us for guidance.
Colour-Coded, Plug-and-Play Sockets
Designed for 29 V DC, 2 A transformers with the industry-standard 2-pin “OI” plug viea the 8 pin loom. Works out of the box with all Okin 5-pin handsets and JLDQ-series actuators. If you also need a new power supply transformer (click here) or a replacement handset remote (click here), we keep the full range in stock for fast dispatch.
Save Time & Money and Do It Yourself
Replacing a control box takes about five minutes: unplug, unscrew, swap, and you’re done. Follow our step-by-step instructions, enjoy the satisfaction of a successful DIY repair, and keep more money in your pocket for the things you love. Feel confident knowing expert help is only a phone call, email or live chat away.
Technical Specifications
Technical Specifications
Make – Okin Refined
Type –JLDP.05
Okin Refined P/N –JLDP.05.060.000

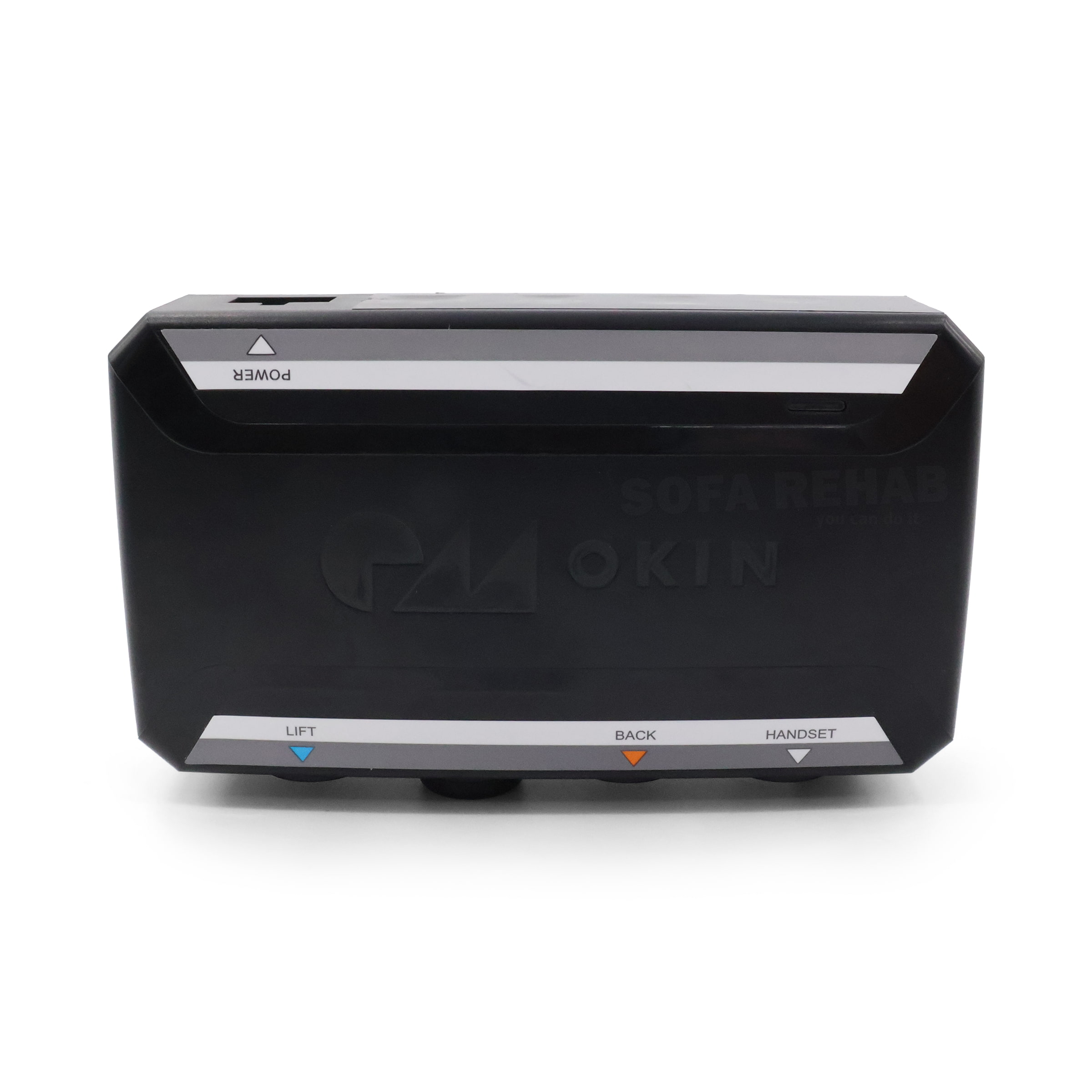

Module Box Housing Connections –Lift and Back plug sockets are all 5 pin. Handset is 7 pin and Power is 8 pin.
Ratings –DC 29V 2 A.
How To
How To
- 1, Isolate the power. Switch the recliner off at the wall and unplug the transformer. Disconnect any battery-backup pack so the chair is completely dead.
- 2, Tip the furniture safely. Lay a blanket on the floor. With a helper, grasp solid frame points (never the footrest) and tilt the chair onto its side or back. Bend your knees and keep your back straight.
- 3, Take a reference photo. Before touching anything, use your phone to photograph the control box showing every plug and colour tag in place. If you forget where a lead goes, your photo is the perfect cheat-sheet.
- 4, Slide the old control box off the bracket. The JLDP unit sits in a cradle. Push it toward the open end (usually forward) until it releases.
- 5, Disconnect the four plugs. Squeeze the latch and pull:
- Blue = Lift actuator
- Orange = Back actuator
- White = 7-pin handset loom + incoming power
- 6, Quick housekeeping check. Remove staples, pet hair or debris. Inspect the two-pin IO lead and transformer for crushed cable or scorch marks.
- 7, Prepare the new JLDP.05.058.000. Confirm the label reads
JLDP.05.060.000. Slide the new box halfway onto the bracket so it’s supported but still exposed. - 8, Reconnect the plugs (match the colours). Align the keyed plugs with their matching sockets and push until they click. Tug each lead lightly to confirm it’s locked.
- 9, Seat the control box fully. Push the module along the bracket rails until it stops; no screws required.
- 10, Return the chair upright. Lift with your helper using the same safe technique. Ensure no cables are trapped under the base.
- 11, Power-up test. Plug the transformer back in, switch on and operate each function: Lift, Back, Head/Lumbar. All actuators should run smoothly.
- 12, Final safety check. Listen for unusual clicking or buzzing and cable-tie any dangling leads clear of moving parts.
You’re done! Enjoy your fully-functional recliner and the savings of a DIY repair.
Need help? Phone, email or chat with our support team — real technicians ready to assist.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
How do I know if the JLDP .05 .058 .000 is the correct replacement for my chair?
Check the white sticker on your existing control box—if the part number matches JLDP .05 .058 .000 you’re good to go.
Still unsure? Snap a photo and send it to our support team; we’ll confirm before you buy.
Do I need to re-program or pair the new control box with my handset?
No. JLDP-05 units are fully hard-wired. Once you plug the handset and actuators back into the new box, everything will work exactly as before—no pairing sequences, software or tools required.
My power brick is rated 29 V 2 A. Will it run this control box?
Yes. The JLDP .05 .058 .000 is designed for the standard 29 V DC, 2 A transformer used on most dual-motor recliners and lift chairs. If your original power supply is dead, grab our universal 2-pin 29 V transformer (see related products) and you’re set.
Only one motor on my chair has failed—could the control box still be at fault?
Possibly. Swap the two motor plugs (blue ↔ orange) at the control box. If the fault moves to the other function, the control box channel is blown and this replacement will fix it. If the same motor still won’t run, the actuator itself is likely the issue.
What tools and time do I need to replace the control box?
No tools and five minutes. Unplug the chair from the wall, loosen the control box, disconnect the old box, then plug-and-play the new one. Push the new box into position, power up, and test—DIY repair done, money saved!
