ClipsSeat Springs

Upholstery Spring Clips 10 Pack

$12.00

10 pack of strong replacement metal upholstery furniture EK style spring clip, used to attach No-Sag, Zig Zag, Sinuous and Serpentine furniture springs to the timber lounge frame. Sofa spring repair clips for all seats, backs and armrests of classic, vintage and modern upholstered armchairs, recliner and modular lounges. Pack Of 10 No Sag Zig Zag Seat Spring Clips Great value - Sold in packs of 10 individual clips. Suitable for use on all Dining chairs, recliners, sofas and ottomans etc... Enough for 5 x springs! Also Known as EK Upholstery Clips Plastic coated, metal spring clips designed to eliminate springs slipping, wearing and squeaking. 'You Can Do It' yourself and save $$$ Ideal for DIY use or even the professional upholsterer. read more

SKU:
U-CLIP25
Brand:
Sofa Rehab
Weight
0.05 kg
Dimensions
18 × 12 × 2 cm
view all details

Description

Zig Zag Upholstery Spring S-clips

Handy 10 pack of durable and strong replacement plastic coated metal EK spring clips suitable for no sag, serpentine or zig zag springs. These 9 gauge spring retaining clips are commonly attached to the chair or lounge timber frame to facilitate the secure connection of the seat, back or armrest springs. Each spring requires 2 x EK spring clips.

Enough Clips To Fix 5 x Springs

Whether you’re undertaking a large DIY restoration project or a just single armchair we supply 10 x EK clips for 5 x standard recliner or chair  springs. If you need more clips order multiple packs. If you doing a one off  spring repair then you’ll have enough spring clips for future repairs too!

Need To Repair a Seat Spring?

Make sure you have all the accessories to help undertake that all important lounge recliner seat spring repairs. Buy the 10 pack of furniture spring clips and be fully prepared to take on the upholstery repair.

Doing a Full Furniture Reno?

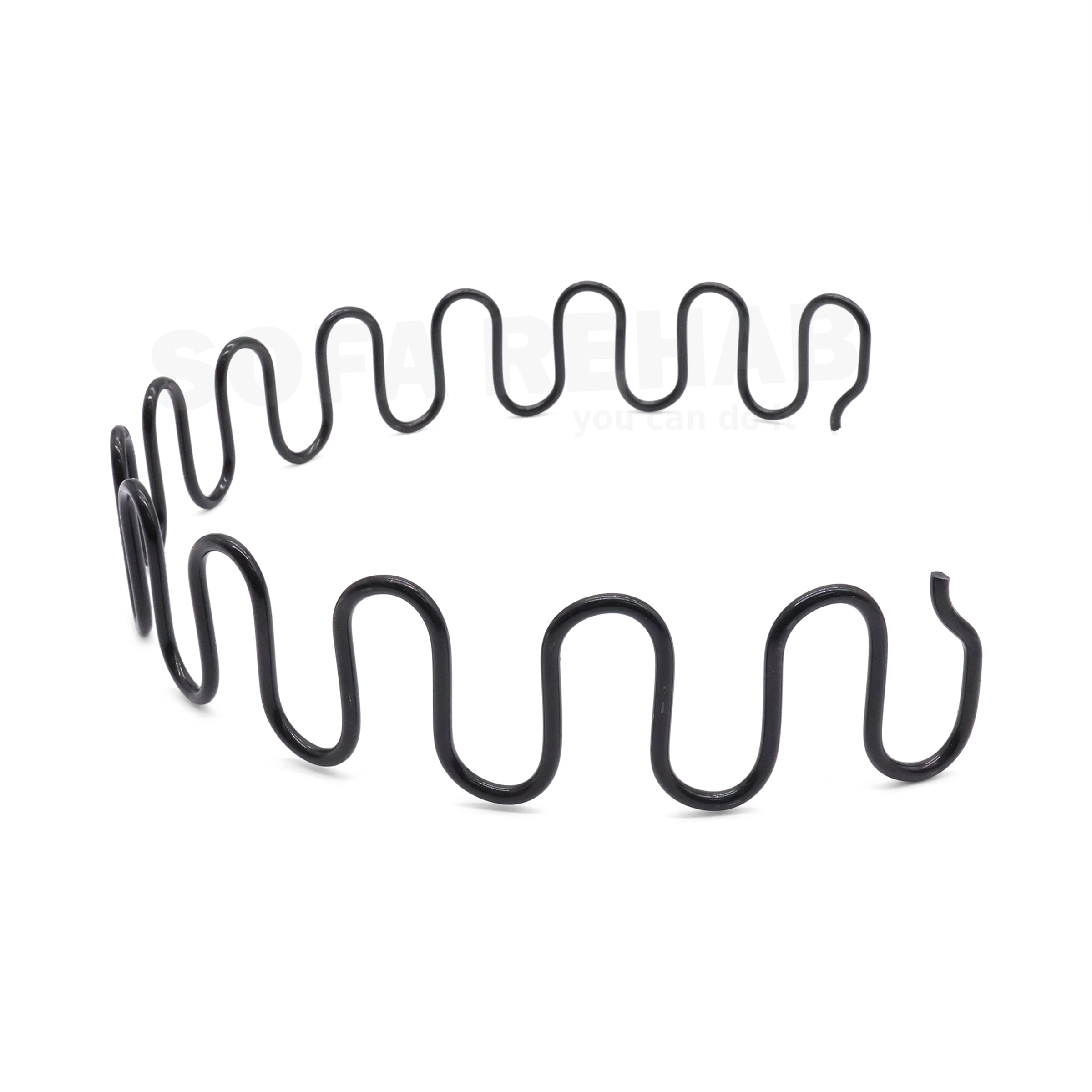

We’ve got you covered! We stock a vast selection of replacement seat springs, support wire ,elastic or Jute webbing to help with either classic, vintage or modern furniture you are restoring. Take a look at  our full range of accessories- >>>>>CLICK HERE FOR OUR FULL RANGE<<<<<

Technical Specifications

Technical Specifications

Type of clip- Upholstery spring clip or also known as EK clip
Material – Metal and plastic coating
Dimensions – Width 21mm x Length 25mm x Closure 16mm
Holes – 4 x oval holes (2 x 15mm x 4mm and 2 x 7mm x 4mm)
Uses – Attaching furniture Seat, back or armrest upholstery zig zag, sinuous and no-sag springs to the frame.
What gauge of spring- Can accept all gauges of upholstery serpentine style springs size/gauge 8-13.

*Note all quoted dimensions are approximate and subject to change.

How To Install

How To Install

NOTE THE BELOW INSTRUCTIONS ASSUME YOU HAVE REMOVED ANY ACCESSORIES, FRAME OR FABRIC TO EXPOSE THE SPRING AREA!
Pro tip- Take a photo of the spring area before you start to note any specific areas like spring spaces or clip positions etc to refer back to if needed!

1, Carefully remove the screw, nail or staple holding the spring clip closed
2, Prise open the spring clip to reveal the metal retaining hook of the spring
3, Pull and lift the spring up, away and out the clip and release the spring tension (Be careful the spring will be under extreme tension and possible risk of injury)
4, Remove the next set of screws, nails or staples securing the spring clip to the frame
5, Remove the clip and clear the timber of any debris
6, Place the replacement clip directly in the same position as the original spring clip
7, Next fasten the spring clip to the timber rail with either a screw, nail or staple keeping space for the next fastener to fit once the spring and clip are closed
8,Carefully pull and retention the spring retainer hook end into the spring clip (Be careful the spring will be under extreme tension and possible risk of injury)
9, Use either thumb force or a hammer to close the spring clip encasing the spring with in the clips grasp
10, Install the last set of screws, nails or staples to secure the spring clip closed.
11, Refit any upholstery fabric and padding removed to access the spring area.

Reviews (1)

Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login

  • Craig Dunn

    (verified owner)

    Did the job well to fix my lounge, arrived in a reasonable time given current delays in postage 🙂

FAQs

FAQs

How many clips do I get?

We supply 10 x individual spring clips which is enough for 5 springs.

Do you sell the springs to match these clips?

Yes we sell a full range of springs and accessories. Please return to the online shop.

I have Okee clips currently, Can I use these spring clips instead?

Generally no. This is because the Okee clips are fitted with an overhang of the frame and the spring clips are fitted to the top of the rail.

I have Ek clips will these work?

Yes, Ek and Spring clips do the same function.
