Kaidi KDH107D-003 Recliner Switch
$59.99
In stock
Genuine Kaidi KDH107D-003 electric recliner switch with USB-A and USB-C charging ports. This nickel coloured 2 button switch suits single actuator electric recliners and lounges. Features a removable fascia, universal left or right fitment, and a 1440mm cable with male 5 pin DIN plug. Kaidi Recliner Switch with USB Charging. Easy plug-and-play replacement for many electric recliners with a 5 pin DIN connection. Clean modern design with removable fascia cover. Need Another Recliner Switch? We stock replacements for all popular electric recliner & sofa brands and models, see our full range of recliner toggle switches (click here) for a suitable replacement. Ask us if you need help choosing. read more
In stock
- Description
- Technical Specifications
- How to
- Reviews (0)
- FAQs
- Add a review
Description
Kaidi KDH107D-003 Recliner Switch with USB-A & USB-C
Genuine Kaidi 2 button electric recliner switch designed for single actuator recliner chairs, lounges and theatre seating. Finished in a modern nickel colour, this replacement switch features both USB-A and USB-C charging ports so you can conveniently charge compatible devices while relaxing.

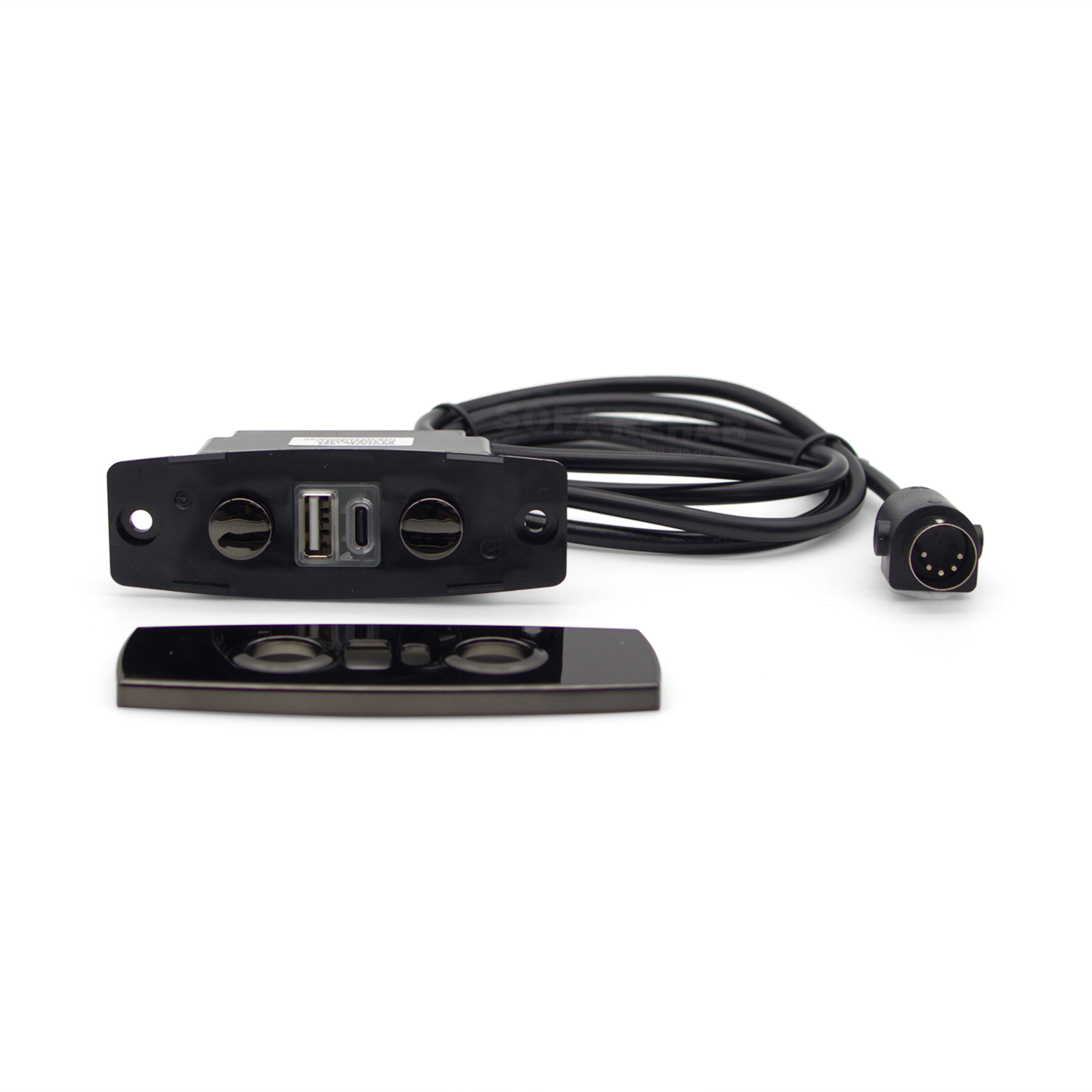

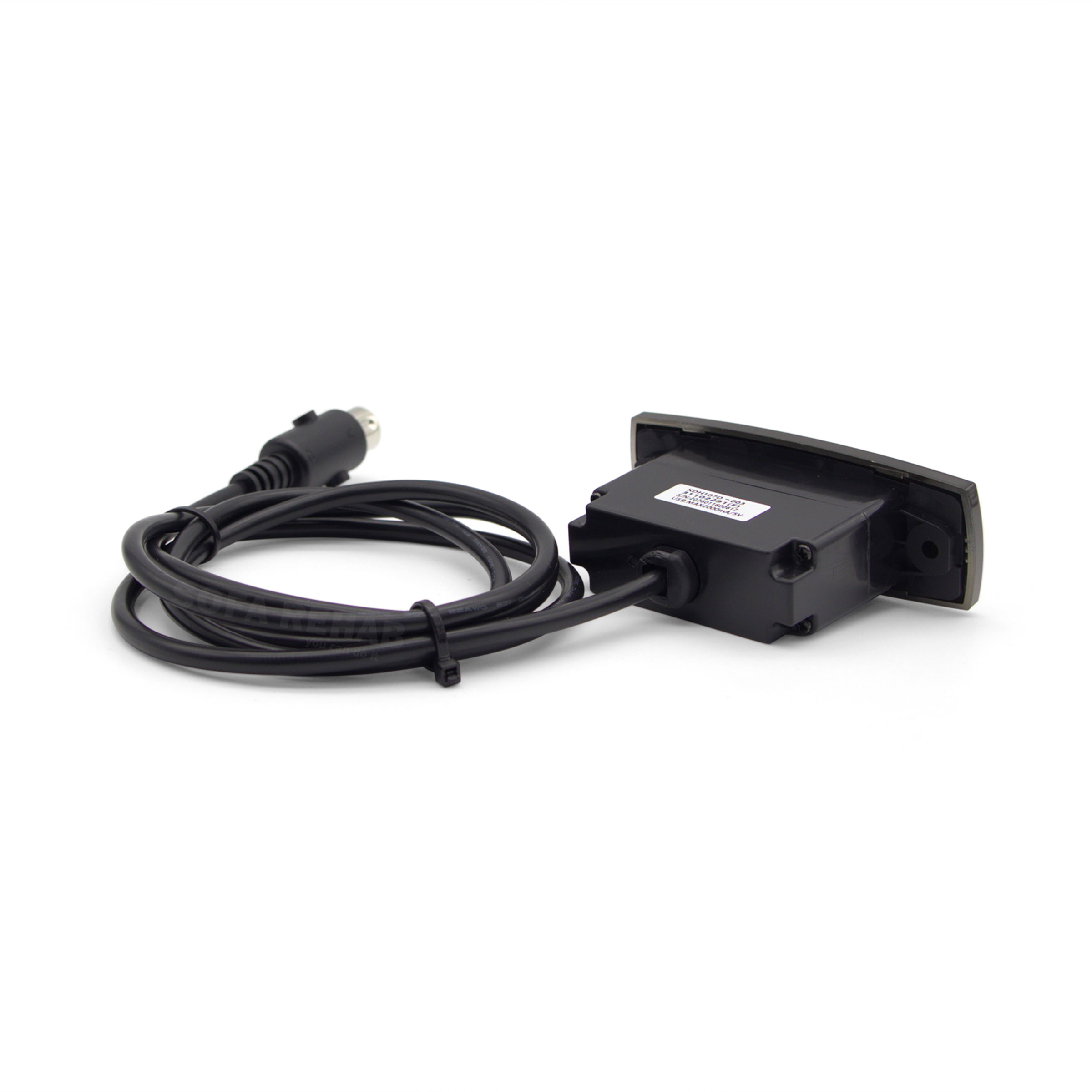

The removable fascia cover conceals the mounting screws for a clean OEM style appearance once installed. Suitable for both left and right side fitment and supplied with a long 1440mm cable including a male 5 pin DIN plug with retaining lugs for a secure connection.
Replacement Recliner Switch Dimensions & Fitting Information
Please compare the measurements and plug style with your existing recliner switch before ordering.
Fascia size:
- 97mm wide
- 35mm high
Switch dimensions:
- 91mm wide
- 30mm high
- 53mm deep including buttons
Minimum cut-out size required:
- 63mm wide
- 26mm high
- 55mm deep
The switch is designed for easy installation into compatible electric recliners using the hidden screw mounting points located beneath the removable fascia cover.
We're Australia's Leading Supplier of Recliner Chair Spare Parts
We’re Australia’s leading supplier of recliner chair spare parts, furniture repair products and DIY repair kits, offering quality replacement parts at affordable prices for both everyday consumers and professional repair technicians. Our focus is helping customers repair their furniture themselves with easy-to-install replacement parts, detailed support and helpful advice that makes DIY repairs simple and cost effective.
Easy DIY Recliner Switch Replacement
Replacing your recliner switch is quick and easy to do yourself with only a screwdriver required. Simply remove the old switch, disconnect the 5 pin DIN plug and install the replacement.
With our DIY repair products, helpful support and replacement spare parts, you can repair your recliner yourself, save money and enjoy the satisfaction of fixing it yourself.
Technical Specifications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Kaidi |
| Manufacturer Code | KDH107D-003 |

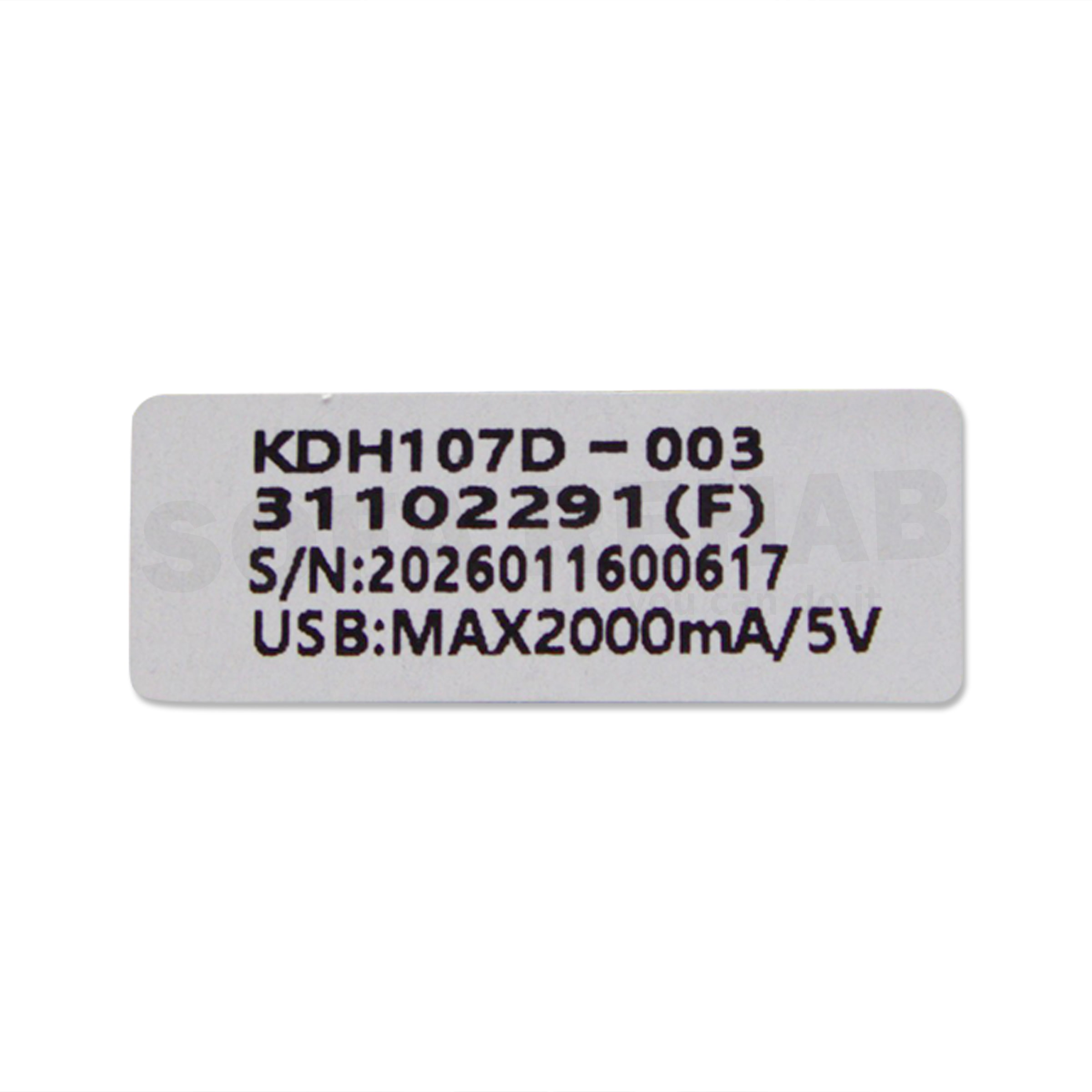

| Manufacturer Part Number | 31102291(F) |
| Product Type | Electric recliner switch |
| Colour | Nickel |
| Button Quantity | 2 buttons |
| Charging Ports | USB-A and USB-C |
| USB Output | Maximum 2000mA / 5V |
| Actuator Suitability | Single actuator electric recliners |
| Side Fitment | Suitable for left or right side installation |
| Fascia Size | 97mm wide x 35mm high |
| Switch Dimensions | 91mm wide x 30mm high x 53mm deep including buttons |
| Minimum Cut-Out Size | 63mm wide x 26mm high x 55mm deep |
| Plug Type | Male 5 pin DIN plug with retaining lugs |
| Cable Length | 1440mm including plug |
| Mounting Style | Removable fascia conceals two screw holes |
| Screws Included | No |
How to
How to
- Disconnect the power. Switch off the recliner at the wall and unplug the power supply before starting. Do not work on the recliner while it is connected to power.
- Move the recliner safely. Carefully move the recliner away from the wall so you have room to work. Use safe lifting practices and ask another person to help if the chair or lounge is heavy.
- Take a before photo. Before removing anything, take a clear photo of the existing switch, cable route and plug connection. This gives you a handy reference when fitting the new switch.
- Remove the old switch fascia. Gently remove the fascia cover from the existing switch to access the screw holes. Take care not to damage the upholstery around the switch.
- Unscrew the old switch. Remove the mounting screws from the old switch and keep them aside, as screws are not supplied with the replacement switch.
- Disconnect the old plug. Follow the switch cable to the connection point and unplug the male 5 pin DIN plug. Release any retaining lugs carefully before pulling the plug apart.
- Check the replacement switch. Compare the new Kaidi KDH107D-003 switch with your original switch, including the fascia size, cut-out size, plug type and cable length.
- Connect the new switch. Plug the new male 5 pin DIN connector into the matching recliner socket. Make sure the retaining lugs are properly engaged for a secure connection.
- Fit the switch into position. Place the new switch into the cut-out hole, making sure the cable is not pinched, stretched or trapped behind the switch body.
- Secure the switch. Reuse your original screws to fasten the switch into place. Do not overtighten the screws, as this may damage the switch housing or furniture frame.
- Refit the fascia cover. Clip the removable nickel fascia back onto the switch so the screw holes are hidden and the switch has a clean finished appearance.
- Test the recliner. Plug the recliner back into power and test the open and close buttons. Also check the USB-A and USB-C ports with a suitable charging cable.
- Return the recliner to position. Once tested, carefully move the recliner back into place using safe lifting practices. Make sure no power cables are crushed or caught under the furniture.
Reviews (0)
Thank you for making an effort to leave a reivew but to protect against spam we only accept reviews from verified owners. Please proceed to login using the same email address you used when ordering the product.
Customer Login
- There are no reviews yet.
FAQs
FAQs
Will this recliner switch fit my chair or lounge?
This switch is designed for single actuator electric recliners that use a male 5 pin DIN plug connection. Please compare your existing switch dimensions, plug style and cut-out size before ordering.
Can this switch be installed on either side of the recliner?
Yes. The Kaidi KDH107D-003 switch is suitable for both left and right side installation.
Does this switch include USB charging ports?
Yes. This switch features both a USB-A port and a USB-C port for convenient device charging while using your recliner.
What is the USB charging output?
The integrated USB charging ports have a maximum output of 5V / 2000mA, suitable for charging many phones and compatible USB devices.
Is this difficult to replace myself?
No. This is a simple plug-and-play DIY replacement that usually only requires a screwdriver and a few minutes to install.
Are mounting screws included with the switch?
No. Mounting screws are not supplied, so you will generally reuse the screws from your original recliner switch.
